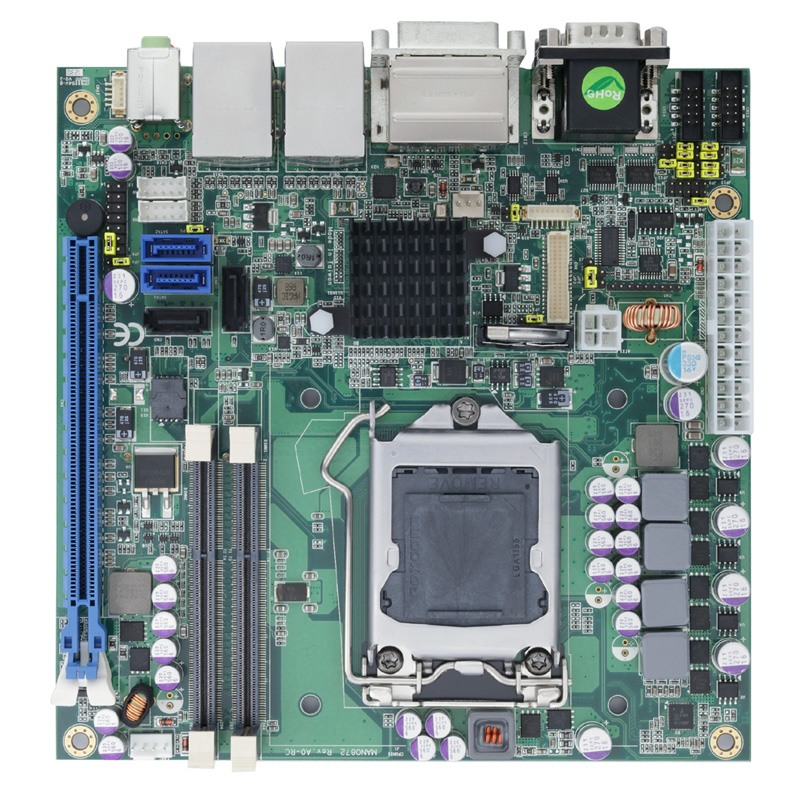

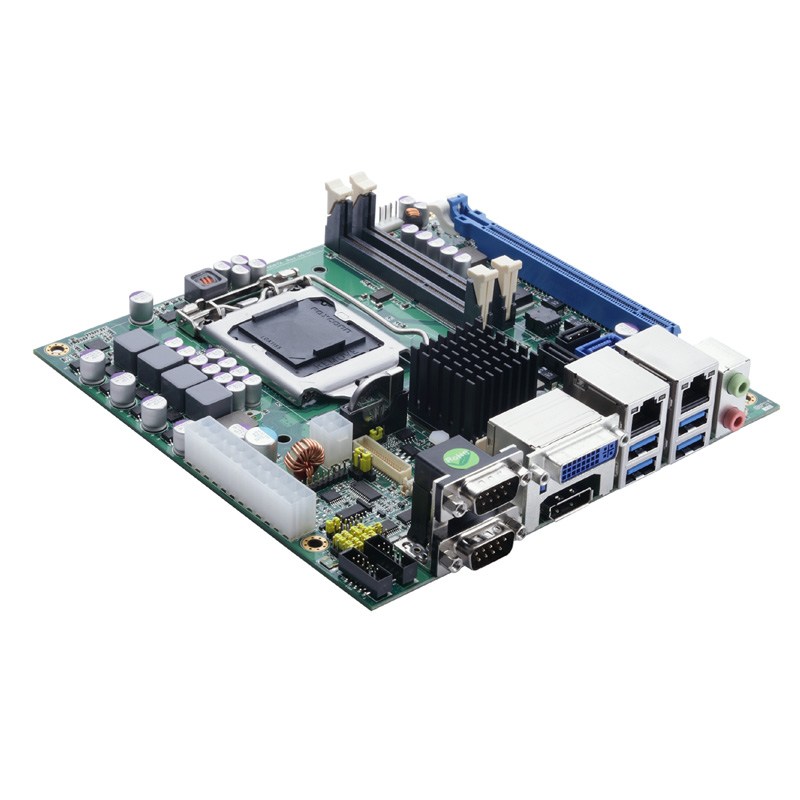

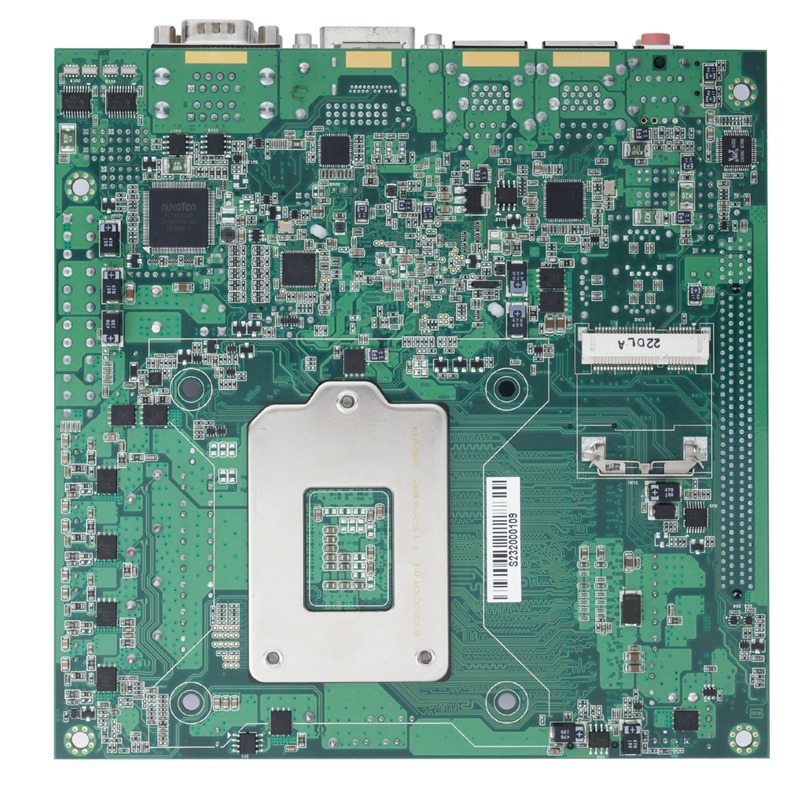

MANO872

LGA1155 Socket Intel® Core™ i7/ i5/ i3/Celeron® Mini ITX SBC with Intel® Q77 PCH, DisplayPort/DVI-I/LVDS, Dual LANsand USB 3.0

  • Features
  • Ordering Information
  • Download
  • Related Products
    • LGA1155 socket 3rd Generation Intel® Core™ i7/ i5/ i3/ Celeron® processors
    • Intel® Q77 PCH
    • 2 DDR3-1333/1600 MHz max. up to 16 GB memory capacity
    • PCIe x16 Gen3 supported
    • 2 SATA-600 with RAID 0,1
    • 2 SATA-300 with 1 SATA DOM supported
    • 4 USB 3.0
    • iAMT 8.0 supported
    • TPM 1.2 supported
    • Triple view display

    Introduction

    The MANO872 Mini ITX motherboard is designed for the new 22nm 3rd Generation Intel® Core™ i7/i5/i3 processors in the LGA1155 socket with Intel® Q77 Express chipset. With features of Intel® Active Management Technology (iAMT), Intel® Small Business Advantage solution, Intel® Smart Response Technology, and Intel® Rapid Storage Technology, the high-performance MANO872 delivers maximum security and manageability. This industrial-grade Mini ITX motherboard also supports 16 GB DDR3 1333/1600 system memory, PCI Express x16 Gen3, USB 3.0, SATA 6Gb/s with RAID, and Trusted Platform Module 1.2. With the new Intel® HD Graphics with DX11 support, the embedded board features powerful graphic processing and three independent displays using the DisplayPort, DVI-I, and LVDS connectors on board. This platform is ideal performance for high-end industrial applications, such as storage server, POS, kiosk, medical, gaming, digital signage, and surveillance security monitoring.

    • MANO872
      LGA1155 socket Mini ITX SBC with Intel® Core™ i7/ i5/ i3/Celeron®, DisplayPort/DVI-I/LVDS, 2 10/100/1000Mbps and 4 USB 3.0
  • BIOS

    The object is under update temporarily, please download it later.

    Drivers

    Date Description Version File Size
    2013/2/25 Chipset Driver V1.00 5,090.5KB
    2013/2/25 Graphic Drvier V1.00 263,297.0KB
    2013/2/25 LAN Driver V1.00 100,005.5KB
    2013/2/25 Audio Driver V1.00 158,183.7KB
    2013/2/25 RAID Driver V1.00 11,476.5KB
    2013/2/25 ME Driver V1.00 57,561.0KB
    2013/2/25 TPM Driver V1.00 52,615.8KB
    2013/2/25 USB 3.0 Driver V1.00 5,093.5KB

    Manual

    Date Description Version File Size
    2013/11/19 User's Manual V1.1 4,801.7KB

    Software

    The object is under update temporarily, please download it later.

    CE Conformity Declaration

    The object is under update temporarily, please download it later.

    Technical Announcement

    The object is under update temporarily, please download it later.

    Mechanical

    The object is under update temporarily, please download it later.
