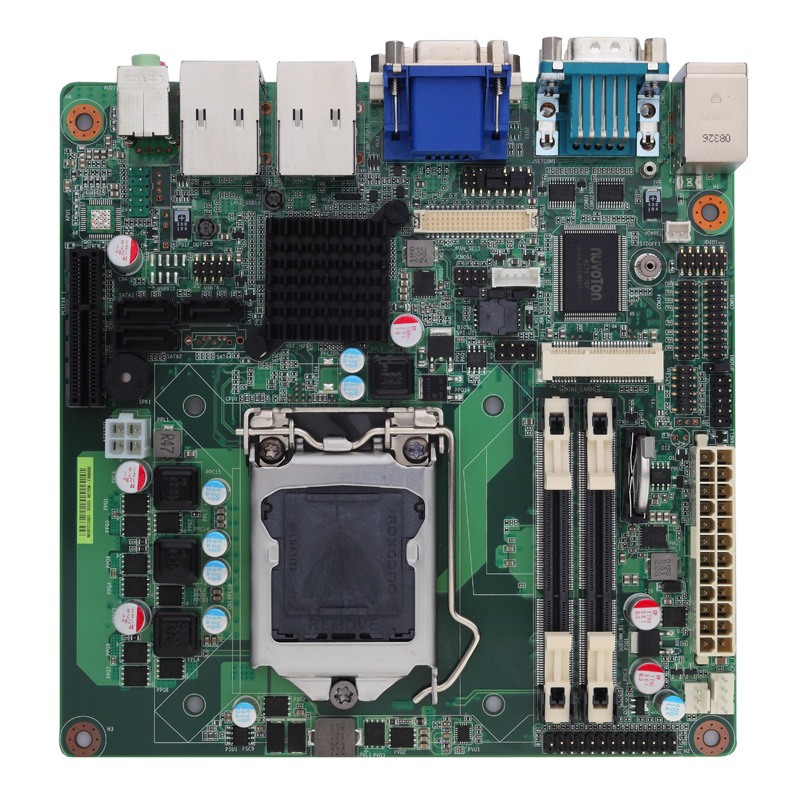

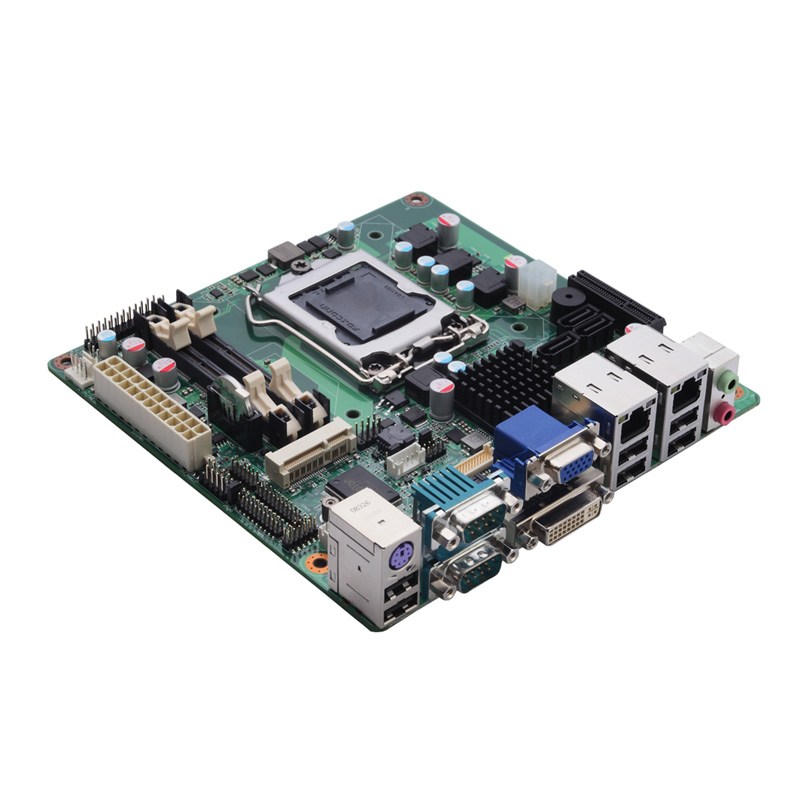

MANO861

LGA1155 Socket Intel® Core™ i7/ i5/ i3/Celeron® Mini ITX SBC with Intel® H61 PCH, VGA/DVI-D/LVDS, Dual LANs and HD Audio

  • Features
  • Ordering Information
  • Download
  • Related Products
    • LGA1155 socket 3rd Generation Intel® Core™ i7/ i5/ i3/ Celeron® processors (Ivy Bridge)
    • 2 DDR3-1066/1333 MHz max. up to 16 GB
    • 1 PCIe x4 supported
    • 3 SATA-300 supported
    • 6 USB 2.0 supported
    • 6 COM ports supported
    • Dual view display

    Introduction

    LGA1155 socket 3rd Generation Intel® Core™ i7/ i5/ i3/ Celeron® processors Intel® H61 chipset 2 DDR3-1066/1333 MHz max. up to 16 GB 1 PCIe x4 supported 3 SATA-300 supported 6 USB 2.0 supported 6 COM ports supported Dual view display

    • MANO861
      LGA1155 socket Mini ITX SBC with Intel® Core™ i7/ i5/ i3/ Celeron®, VGA/DVI-D/LVDS, 2 10/100/1000Mbps, 6 COM and audio
  • BIOS

    The object is under update temporarily, please download it later.

    Drivers

    Date Description Version File Size
    2013/7/15 Chipset Driver V1.0 2,523.4KB
    2013/7/15 Audio Driver V1.0 154,604.0KB
    2013/7/15 LAN Driver V1.0 11,067.0KB
    2013/7/15 Intel Turbo Boost Technology Monitor V1.0 21,025.8KB
    2013/7/15 Microsoft .NET Framework 3.5 V1.0 237,062.4KB
    2013/7/15 VGA Driver V1.0 261,883.8KB

    Manual

    Date Description Version File Size
    2013/7/15 MANO861 User's Manual VA1 VA.1 3,799.4KB

    Software

    The object is under update temporarily, please download it later.

    CE Conformity Declaration

    The object is under update temporarily, please download it later.

    Technical Announcement

    The object is under update temporarily, please download it later.

    Mechanical

    The object is under update temporarily, please download it later.
