CEM100

AMD G-Series APU COM Express™ Type 2 Basic Module with AMD A55E FCH Chipset

  • Features
  • Ordering Information
  • Download
  • Related Products
    • AMD G-Series APU T56N 1.65 GHz/ T40R 1.0 GHz
    • AMD A55E FCH
    • 2 DDR3-1066 SO-DIMMs max. up to 8 GB
    • 8 lanes of PCIe Gen 2 at 5GT/s
    • 4 SATA-600 with RAID 0, 1, 5, 10
    • DirectX11, OpenGL 4.0, and OpenCL 1.0 supported
    • TPM 1.2 supported

    Introduction

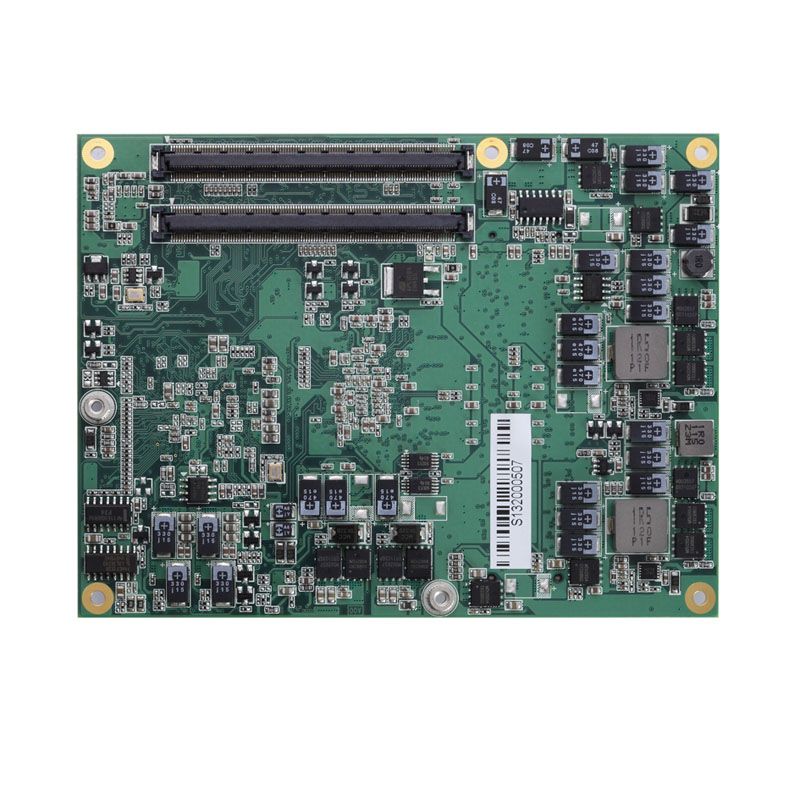

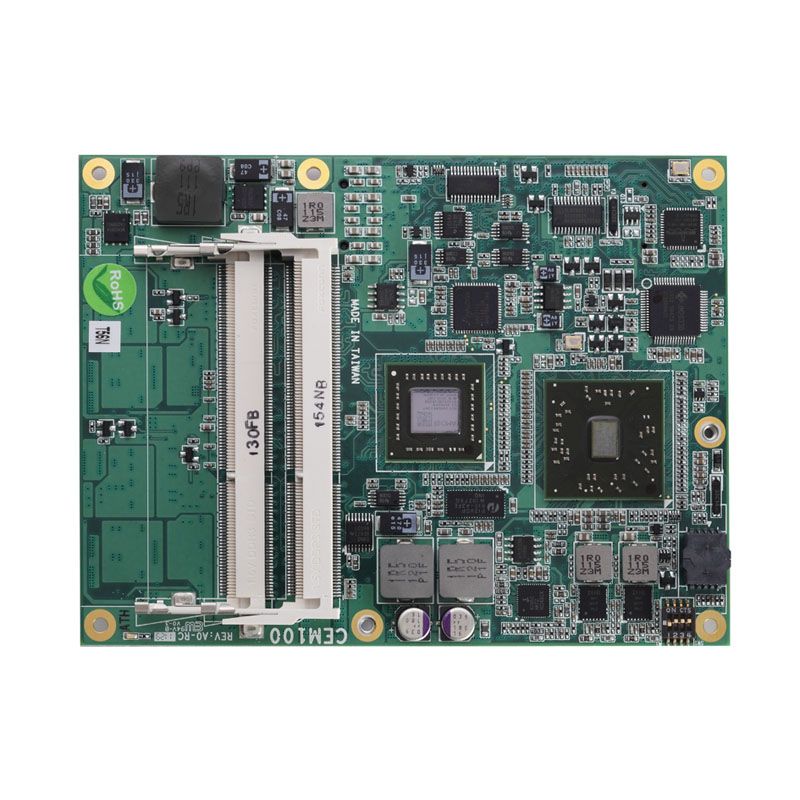

    The CEM100 low-power COM Express Type 2 module is powered by either a single core AMD G-Series APU T40R at 1.0GHz or the dual core T56N at 1.65 GHz paired with the A50M FCH chipset. The platform comes with two DDR3 1066 MHz SO-DIMM slots for up to 8 GB of system memory and four SATA ports with RAID 0, 1, 10, 5. Integrated with Radeon™ HD 6250/ HD 6320 graphics controller with support for DirectX 11 and OpenGL® 4.0, the CEM100 provides outstanding visual experience and features two DDI, 18/24-bit single/dual channel LVDS and VGA display interfaces. Moreover, this small form factor embedded board also provides four 32-bit PCI plus eight PCIe x1 Gen 2.0 slots for I/O expansion. For applications looking for more security protection, TPM 1.2 is also integrated into this board. The CEM100 is ideal for applications in retail, medical, gaming, digital signage and many more.

    • CEM100VG-T56N (P/N- E38D100100)
      COM Express type 2 module with T56N 1.6 GHz APU, VGA/LVDS, 10/100/1000Mbps Ethernet, USB and TPM
    • CEM100VG-T40R (Fanless) (P/N- E38D100101)
      COM Express type 2 module with T40R 1 GHz APU, VGA/LVDS, 10/100/1000Mbps Ethernet, USB and TPM
    • CEB94000
      ATX form factor type 2 baseboard
    • 5078D100000E
      CEM100 heatspreader module
    • 5078D100100E
      COM Express SoM cooling kit with fan
    • 5078D100200E
      COM Express SoM cooling kit without fan
  • BIOS

    The object is under update temporarily, please download it later.

    Drivers

    Date Description Version File Size
    2012/5/9 Official Function Driver VA1.0 786,426.1KB

    Manual

    Date Description Version File Size
    2012/5/9 User Manual VA1 3,058.5KB

    Software

    The object is under update temporarily, please download it later.

    CE Conformity Declaration

    Date Description Version File Size
    2012/4/20 CEM100 CE-Conformity Declaration N/A 41.6KB

    Technical Announcement

    The object is under update temporarily, please download it later.

    Mechanical

    Date Description Version File Size
    2012/3/2 CEM100DM20120217.pdf N/A 200.1KB
