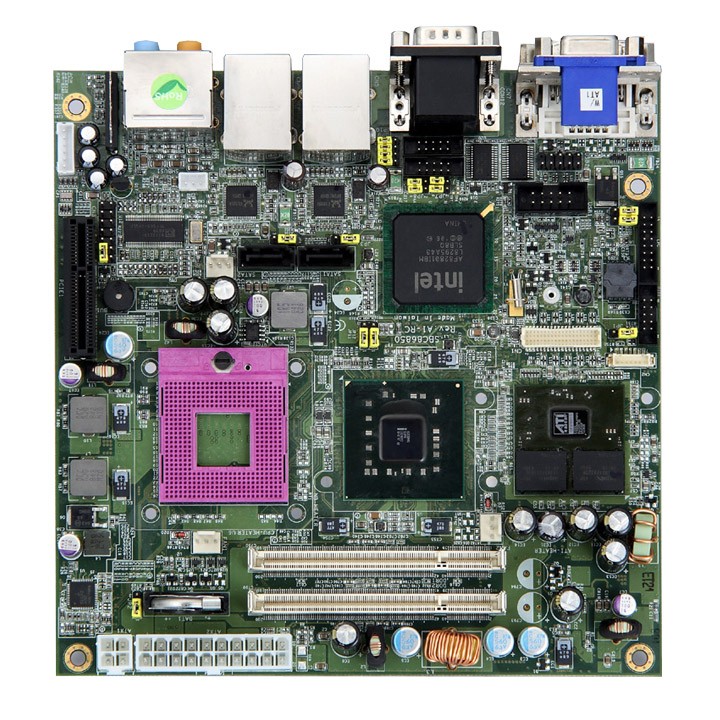

SBC86841

Axiomtek quickly lined up a series of gaming solution platforms for slot machines, amusement gaming machines and lottery markets, the SBC86841 is one of targeted gaming boards with Intel® Core™2 Duo computing power. In the meanwhile, it is equipped with signal/dual channel 24-bit LVDS and DVI-I interface onboard which integrates DVI-D (Digital Video) and CRT (Analog Video) for large size LCD panel displays. VGA function with Intel® GMA 3000 Architecture is built into the Intel® Q965 Express chipset which delivers powerful graphics performance, richer visual color and supports Microsoft DirectX 9; besides, the board has a maximum video memory of up to 256MB, which is shared by the system memory. The DualView features supports CRT plus LVDS, CRT plus DVI and DVI plus LVDS outputs with different contents and different resolutions. Furthermore, it comes with onboard multiple serial interfaces such as, 2 IEEE1394a ports, 8 USB 2.0 ports, 8 Digital I/O (3 channel-in and 5 channel-out), 4 COM ports, optional TPM1.2, and optional CompactFlash™ Type II socket for SSD storage devices.

• LGA775 for Intel Core™2 Duo/Core™ Solo processor with FSB 533/800/1066 MHz
• Intel® Q965 + ICH8 chipset
• With high performance integrated graphics controller
• 4 COM ports for transaction terminal applications
• 8 USB 2.0 ports and 2 IEEE 1394a ports

• SBC86841DGGAF (P/N-E386841100) LGA775 Mini ITX SBC with DVI-I/LVDS LCD, 2 10/100/1000Mbps, HD audio, 4 COM ports and firewire
