Embedded Board & SoM

STX SoM board (96 x 90 mm), with a suitable baseboard, is an optimized solution for embedded applications with various customized demands, which standard single board computer (SBC) cannot satisfy and also features a low TCO (Total Cost of Ownership). The customizable baseboard is great for reducing costs and improving the Time to Market when compared to existing standard single board computers.

The COM Express module (125 x 95 mm) is designed with all components necessary and offers the most updated bus interfaces. COM Express module satisfies a wide range of vertical embedded applications with features of great computing performance and rich I/O capabilities, and reduces customers' time-to-market and ownership cost.

The ETX module (114 x 95 mm) is very compact and highly integrated SBC. It integrates core CPU and memory functionality, standard personal computer (PC) peripheral function such as graphics, USB, serial and parallel ports, keyboard/mouse, Ethernet, IDE, PCI, and ISA buses. All ETX modules have a standardized form factor and a standardized connector layout.

MiniITX motherboards are designed with rich functionality and reliable performance in a small footprint that measures just 170 x 170 cm. Mini ITX Motherboards provide greater flexibility for applications in which compact size and power-efficiency are required, such as kiosks, POS, lottery machines, gaming systems, factory automation, DSA, and more.

Micro ATX industrial motherboards (244 x 188 mm) are designed with rich functionality in a small footprint, best for space-sensitive applications.

Axiomtek's high performance ATX industrial motherboards (305 x 244 mm) support a wide range of computing capacities and up to 8 expansion slots. Industrial ATX motherboards are ideal platforms for applications in digital video recorder, POS system, intelligent transportation system, multi-media center and more.

The Pico-ITX SBC is an incredibly small 10 cm x 7.2 cm mainboard, the world's smallest x86 embedded board. The Pico-ITX SBC provides system developers and OEMs with an ultra compact yet highly integrated platform that delivers excellent computing performance at remarkably low power consumption. For car PCs and in-flight entertainment systems or industrial automation systems and even portable devices, the Pico-ITX SBC satisfies customer's demands in compact-size, fanless operation, low power consumption and versatile I/O.

Axiomtek's 3.5" Capa board (originally "Capability", named for small dimensions with full feature capability) is created for various applications in need of a compact size. Axiomtek offers a wide range of 3.5" embedded boards from low power consumption Atom architecture with ruggedized fanless reliability requirements to Dual-Core performance plus flexible onboard features; we are sure to have the right compact boards for your applications.

The EPIC board is small industrial-grade embedded computer board with the option of I/O expansion via PC/104, PC/104-Plus, USB, Ethernet... etc. The size of EPIC embedded SBC is midway between the industry standard PC/104 module and EBX board. The EPIC embedded SBC supports advanced processors plus complex I/O functions for applications involving data acquisition, video processing, telecommunications, networking, motion control plus the associated field wiring termination, I/O circuit protection, and many more.

The 5.25" Petit board family (203 x 146 mm), alongside EISA (PCI + ISA), PCI, PC/104, and PCI104 expansion interfaces, is a basic computing kernel and ideal platform solution with scalability, flexible I/O connectors, and low power consumption. The 5.25" embedded SBC is very popular and widely used in industrial applications.

Axiomtek's PC/104 product line includes PC/104 CPU modules from 486 to Pentium level or VIA ; DIO, AD/DA converter and relay output modules; Audio & Video Modules... etc.

Axiomtek's PICMG 1.3 full-size CPU cards (338 x 126 mm) offer high performance PCI Express slot as interface to the backplane, and improve I/O bandwidth and graphic performance from the original PICMG 1.0 specification.

Axiomtek's PICMG 1.0 full-size CPU cards (338 x 122 mm) are focused on multiple-slot PCI and ISA expansion demands. These series of full-sized SBCs feature comprehensive backplane support and are the most expansible solutions for industrial slot-hungry applications.

The PICMG 1.0 half-size CPU card (185 x 122 mm) is compliant to the industrial standard form factor of a half length add-on card. Axiomtek provides standard ISA or PICMG compliant PCI edge interfaces on all of its half-size CPU cards, which are best suited for compact-size applications.

Axiomtek's PICMG 1.3 half-size CPU cards (185 x 126 mm) offer high performance PCI Express slot as interface to the backplane, and improve I/O bandwidth and graphic performance from the original PICMG 1.0 specification. The PICMG 1.3 half-size SBC is specially designed for space concernd applications.

A full line of MiniPCI modules support Fast Ethernet, Gigabit Ethernet, wirless LAN, and multiple COM ports. These Mini PCI modules can be easily integrated into single board computer.

Axiomtek provides expansion riser cards for ISA/PCI/PCI-X buses to simplify and shorten the system design time.

Axiomtek provides various I/O cables for customers to simplify and shorten the system design time.

Axiomtek develops various LCD wiring kits to help customer to easily install chosen LCD module onto targeted system.

Axiomtek's FIC (Flash in Card) series complies with CompactFlash™ specification and provides complete PCMCIA-ATA functionality and compatibility. This flash memory series is an ideal solution for industrial storage application requiring reliability, high performance, and low power consumption.

Axiomtek's FID (Flash in Disk) series is a high performance 2.5" flash disk and fully compatible with IDE standard which make it an ideal replacement for conventional IDE HDD without any driver or system modification. With the features of high capacity storage, data integrity, anti-vibration and low power consumption, this flash memory series is surely a solid solution for expanding an industrial computer's memory.

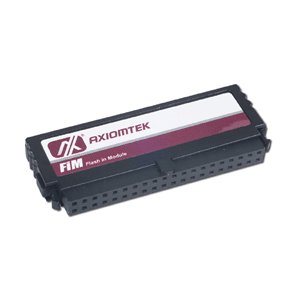

Axiomtek's FIM (Flash in Module) series is designed into ATA protocol type with compatible IDE standard interface based on flash memory technology. The features of reliability, high performance, cost-effective and easy-to-integrate designs make this flash memory series a perfect solution over traditional storage devices.

Axiomtek's FIU (Flash in USB) series is fully compliant with USB interface and provides an easy and fast method of data storage. This USB flash memory module can be used as additional storage memory for rough industrial environment.

Axiomtek's FSA (Flash SATA Disk) series is a high performance 2.5" flash disk and fully compatible with SATA standard which make it an ideal replacement for conventional SATA HDD without any driver or system modification.

Axiomtek's FSD (Flash SATA DOM) series is designed into Serial ATA protocol type with compatible Serial ATA standard interface based on flash memory technology.
