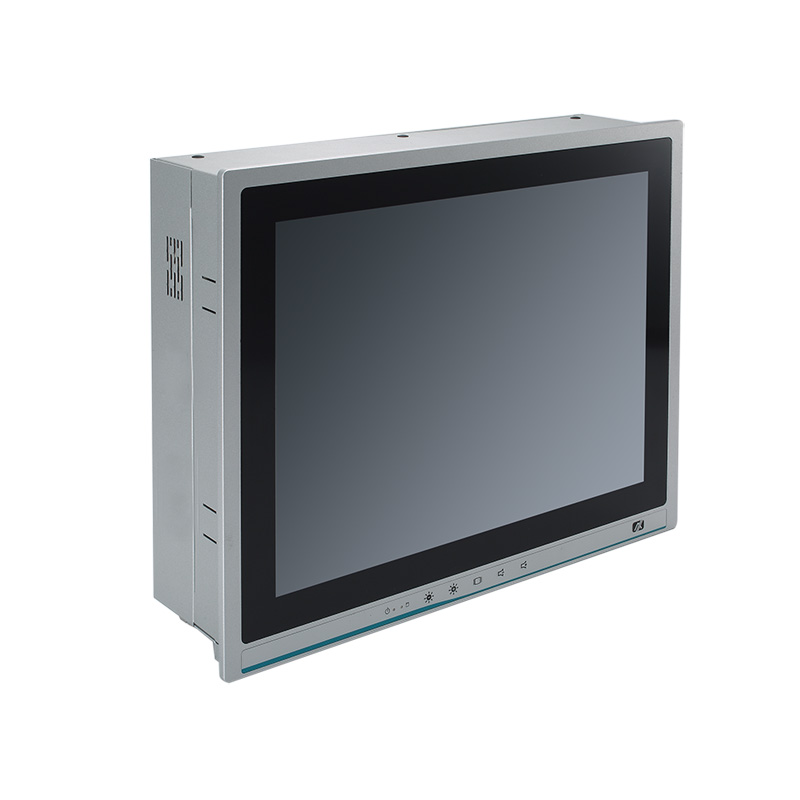

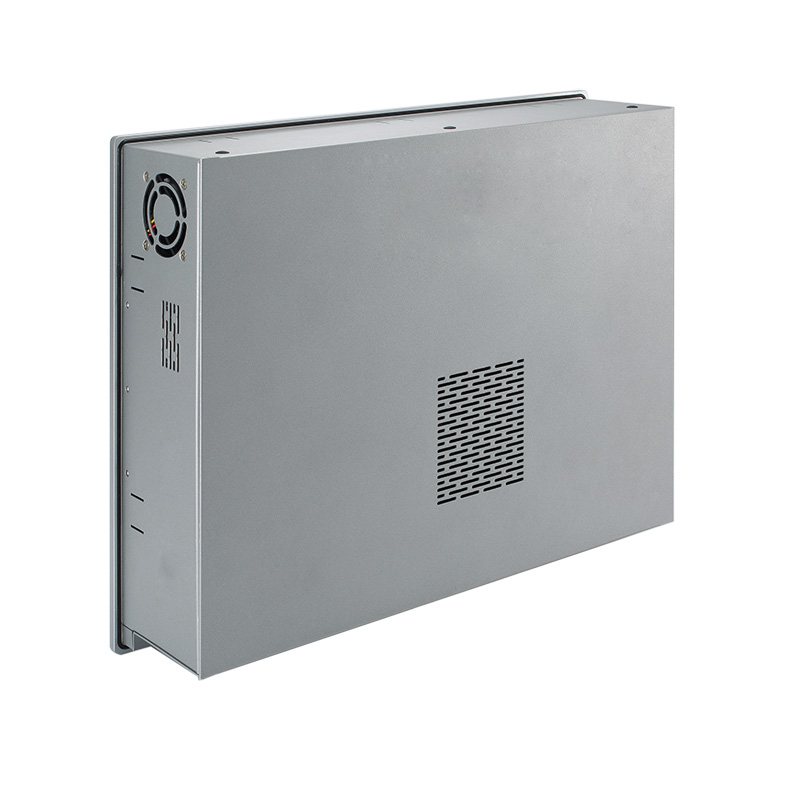

P1157E-500

15" XGA TFT Expandable Industrial Touch Panel Computer with 7th/6th Gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor and 1 PCI/PCIe Slot

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • 15" XGA TFT LCD display
    • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processors
    • Intel® H110 chipset
    • Less screw design for easy installation
    • 4 USB 3.0, 2 USB 2.0 and 4 COM ports
    • One PCIe x4 or one PCIe slot
    • Built-in speakers and optional Wi-Fi 802.11 b/g/n module
    • Robust IP65 compliant aluminum front bezel
    • 5 OSD keys in front panel

    Introduction

    The P1157E-500 adopts a 15” XGA TFT LCD display, featuring an IP65-rated front bezel and 5-wire resistive touchscreen with 250 nits brightness– making it perfectly suited for use in multimedia kiosks or as a human machine interface (HMI) in factory automation applications. The 15” P1157E-500 has scalable CPU options with the 7th/6th generation Intel® Core™ i7/i5/i3, Celeron® and Pentium® processors in an LGA1151 socket with an Intel® H110 chipset (codename: Kaby Lake). This industrial touch panel system supports dual DDR4-2133 Long-DIMM sockets with up to 32 GB memory. The IP65-rated P1157E-500 features one PCIe x4 slot or one PCI slot for flexible integration of a variety of add-on cards. It also comes with built-in speakers for multimedia applications, and an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity.

  • LCD Panel
    • 15" XGA TFT LCD
    • 250 nits
    • 1024 x 768 pixels
    CPU
    • LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor
    Chipset
    • Intel® H110
    System Memory
    • 2 x 288-pin Long-DIMM DDR4-2133, up to 32GB
    BIOS
    • AMI
    COM
    • 3 x RS-232
    • 1 x RS-232/422/485
    USB
    • 4 x USB 3.0
    • 2 x USB 2.0
    Ethernet
    • 2 x 10/100/1000 Mbps (Intel® i219LM/i211AT)
    Display
    • 1 x HDMI
    • 1 x VGA
    • 1 x DisplayPort
    Audio
    • Mic-in/Line-out
    Storage
    • 1 x 3.5" SATA HDD or 1 x 2.5" SATA HDD (2 x 2.5" SATA HDD optional)
    Expansion
    • 1 x PCIe x4 or 1 x PCI
    Others
    • 1 x Remote Power Switch
    Touchscreen
    • 5-wire resistive type
    Front Bezel
    • Aluminum w/ IP65/NEMA 4 rugged protection
    Power Supply
    • 100 ~ 240 VAC, 200 W
    Power Comsumption
    • 97.6W
    Watchdog Timer
    • 255 levels, 1 ~ 255 sec.
    Operating Temperature
    • 0°C ~ +50°C (+32°F ~ +122°F)
    Relative Humidity
    • 10% ~ 90% @ 40°C, non-considering
    Vibration
    • 1.0G, 5 ~ 500Hz, random
    Dimensions
    (W x D x H)
    • 378.3 x 90 x 310.3 mm (14.89" x 3.54" x 12.22")
    Weight (net/gross)
    • 5.4 kg (11.90 lb)/ 7.8 kg (17.20 lb)
    Certificate
    • CE
    EOS
    • Skylake: Windows® 7/8.1/10
    • Kabylake: Windows® 10 64-bit
    Mounting
    • VESA mount
    • Wall mount
    • Rack mount
    • P1157E-500 w/ PCIe
      15" XGA expandable industrial touch panel computer with LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCIe x4 slot, 100 ~ 240 VAC
    • P1157E-500 w/ PCI
      15" XGA expandable industrial touch panel computer with LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, resistive touch screen and 1 PCI slot, 100 ~ 240 VAC
  • Drivers

    Date Description Version Download File
    2017/08/14 Win7_Win8.1_Driver_USB_3.0 VA1.1 7,870.7KB
    2017/08/14 Driver_RST VA1.1 771KB
    2017/08/14 Driver_Touch driver VA1.1 5,256.3KB
    2017/08/14 Win10_Driver_Audio VA1.1 346,928KB
    2017/08/14 Win10_Driver_LAN VA1.1 159,132.4KB
    2017/08/14 Win10_Driver_Graphic VA1.1 708,807.9KB
    2017/08/14 Win10_Driver_HECI VA1.1 88,301.2KB
    2017/08/14 Win10_Driver_Chipset VA1.1 2,711.2KB

    Software

    Date Description Version Download File
    2017/08/14 Wifi Module VA1.1 539,855.2KB
    2017/08/14 AX-USB30-Utility VA1.1 856.9KB

    Manual

    Date Description Version Download File
    2017/08/14 User's Manual VA1.1 4,076.5KB
