PICO511

Pico-ITX SBC with 7th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, LVDS and LAN

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • 7th gen Intel® Core™ i7/i5/i3 and Celeron® processor
    • 1 DDR4-2133 SO-DIMM, up to 16GB
    • 2 PCI Express Mini Cards
    • Intel® AMT 11 supported

    Introduction

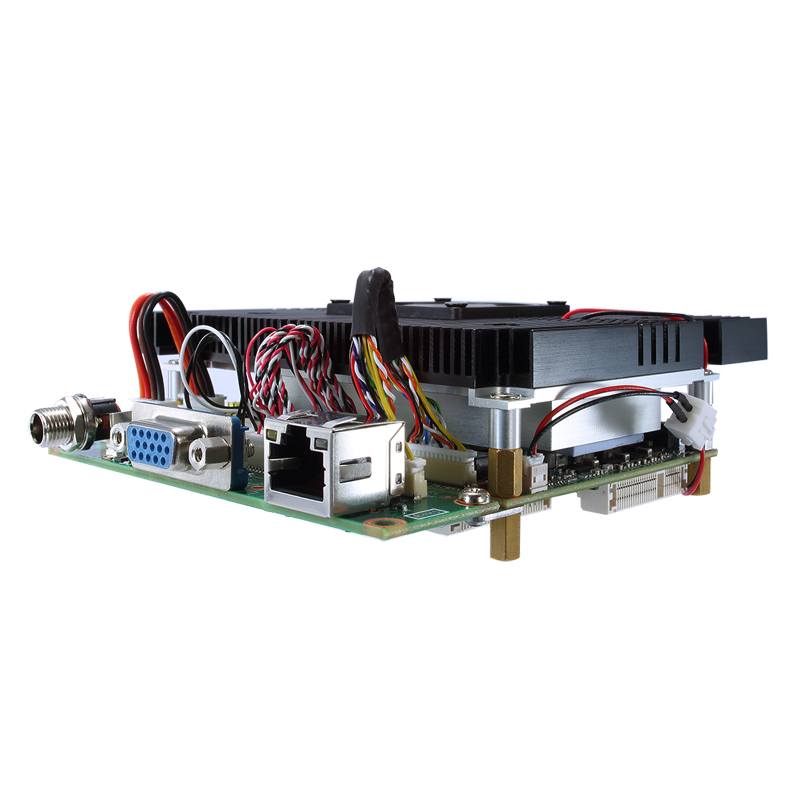

    The PICO511 is an extremely compact Pico-ITX motherboard featuring the latest 7th generation Intel® Core™ processor or Celeron® processor 3965U (codename: Kaby Lake). The feature-rich 2.5-inch embedded board is building flexible I/O interfaces through board to board connectors, wide temperature range in a small-form factor motherboard to fit different needs of many demanding applications in various industries. The PICO511 is perfect for system integrators who require an extremely compact embedded motherboard with great processing power and expansion capabilities. Its compact size form factor has ensured that it can fit into a variety of space constricting environments. In addition, the Intel® Kaby Lake-based motherboard was designed to withstand extreme temperatures, ranging from -20°C to +70°C (0°F to +158°F).

  • CPU
    • 7th generation Intel® i7/i5/i3 & Celeron® processor onboard
    Chipset
    • SoC integrated
    System Memory
    • 1 x 260-pin SO-DIMM DDR4-2133 , up to 16GB
    BIOS
    • AMI
    COM
    • N/A
    USB
    • 1 x USB 2.0
    Ethernet
    • 1 x 10/100/1000 Mbps (Intel i219LM)
    Display
    • 1 x LVDS
    Digital I/O
    • N/A
    Audio
    • N/A
    Storage
    • 1 x SATA-600
    Expansion
    • 1 x Full-size PCI Express Mini Card with mSATA supported
    • 1 x Half-size PCI Express Mini Card
    • 1 x PCIex1, 1 x LPC, 1 x DDI, 4 x USB 3.0, 1 x HD audio and 1 x SMBus (through expansion connector)
    Others
    • TPM 1.2
    • SMBus
    • I2C
    Battery
    • Lithium 3V /220 mAH
    Power Input
    • 1 x 4-pin connector
    • +12V DC-in only
    • AT Auto Power On function supported
    Power Requirements
    • TBD
    Watchdog Timer
    • 65536 levels, 1~65535 sec.
    Hardware Monitoring
    • Yes
    Operating Temperature
    • -20°C ~ +70°C (-4°F ~ 158°F)
    Relative Humidity
    • 10% ~ 95% relative humidity, non-condensing
    Dimensions
    • 100 x 72 mm
    Board Thickness
    • 1.6 mm
    Certificate
    • CE
    • PICO511LG-i7-7600U (P/N-E38H511103)
      Pico-ITX SBC with Intel® Core™ i7-7600U, LVDS, 1 GbE LAN, 1 USB
    • PICO511LG-i5-7300U (P/N-E38H511102)
      Pico-ITX SBC with Intel® Core™ i5-7300U, LVDS, 1 GbE LAN, 1 USB
    • PICO511LG-i3-7100U (P/N-E38H511101)
      Pico-ITX SBC with Intel® Core™ i3-7100U, LVDS, 1 GbE LAN, 1 USB
    • PICO511LG-Celeron-3965U (P/N-E38H511100)
      Pico-ITX SBC with Intel® Celeron® 3965U, LVDS, 1 GbE LAN, 1 USB
    • AX93A00 (P/N-E393A00100)
      I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x VGA, 1 x Audio
    • AX93A01 (P/N-E393A01100)
      I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x HDMI, 1 x Gigabit LAN
    • AX93A02 (P/N-E393A02100)
      I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x Audio
    • AX93A09 (P/N-E393A09100)
      I/O board for 1 x RS-232/422/485, 1 x RS-232, 4 x USB 2.0, 1 x Audio
