NA345

Desktop Network Appliance Platform with Intel® Pentium® Processor N4200/Celeron® Processor N3350 and 4 LANs

  • Features
  • Specifications
  • Ordering Information
  • Download
  • Related Products
    • Intel® Pentium® processor N4200/Celeron® processor N3350 (Apollo Lake)
    • One DDR3L-1866 SO-DIMM, up to 8GB memory
    • Four 10/100/1000 Mbps Ethernet ports (Intel® i211)
    • Wi-Fi/3G/LTE through PCI Express Mini Card slot for optional
    • Suitable for VPN, network bandwidth controller and firewall applications

    Introduction

    The NA345 features the latest Intel® Atom™ x5-E3930 processor up to 1.8 GHz (codename: Apollo Lake) which is based on Intel next generation entry-level IoTG platform with 14 nm silicon process technology. Four Gigabit Ethernet ports with Intel® i211 controller are integrated into this unit with one pair supporting LAN bypass. The desktop network appliance supports one DDR3L-1600 SO-DIMM slot with a maximum of up to 8GB memory. For storage, it also provides one mSATA and 2.5” SATA hard disk drive. This slim type Intel® Apollo Lake network appliance is an ideal solution for VPN, content filtering, UTM, network security gateway, and firewall. To enhanced reliability, the new NA345 supports data protection via one group latch-type LAN bypass function for fail-over option and features BIOS redirection to console port. It also has acquired EN 60950-1, FCC Class B and CE Class B certifications. The NA345 adopts slim type design, which measures 44 mm x 231.9 mm x 152 mm, for use in condition-limited environments. Upgrading your networking solution with Axiomtek’s NA345 will bring you great value with flexibility, scalability and field-proven reliability.

  • Form Factor
    • 1U desktop
    CPU
    • Intel® Pentium® processor N4200 (Apollo Lake)
    • Intel® Celeron® processor N3350 (Apollo Lake)
    Chipset
    • SoC integrated
    System Memory
    • 1 x SO-DIMM DDR3L-1866 non-ECC memory, up to 8GB
    BIOS
    • AMI
    Ethernet
    • 4 x 10/100/1000 Mbps (Intel® i211, optional 6 ports by request)
    LAN Bypass
    • 2 pairs (optional)
    LAN Module
    • N/A
    Storage
    • 1 x 2.5" SATA 3 HDD
    • 1 x mSATA
    Expansion
    • 1 x PCI Express Mini Card (USB interface)
    I/O Interface
    • 1 x RS-232 (RJ-type)
    • 2 x USB 3.0
    • 4 x RJ-45
    • 1 x HDMI (optional)
    Power Supply
    • 1 x 12V, 5A power adapter
    LCM Module
    • N/A
    Operating Temperature
    • 0°C ~ +40°C (32°F ~ +104°F)
    Dimensions
    (W x D x H)
    • 44 x 231.9 x 152 mm (1.73" x 9.00" x 5.98")
    Weight (net/gross)
    • 2.35 kg (5.18 lb)/2.61 kg (5.75 lb)
    EOS Support
    • Win 10, Linux
    Certificate
    • FCC class B
    • CE class B
    • NA345-D4GI-N3350-US (P/N-E26E345100)
      1U desktop network appliance with Intel® Celeron® processor N3350 and 4 GbE LANs
    • NA345-D4GI-N4200-US (P/N-E26E345102)
      1U desktop network appliance platform with Intel® Pentium® processor N4200 and 4 GbE LANs

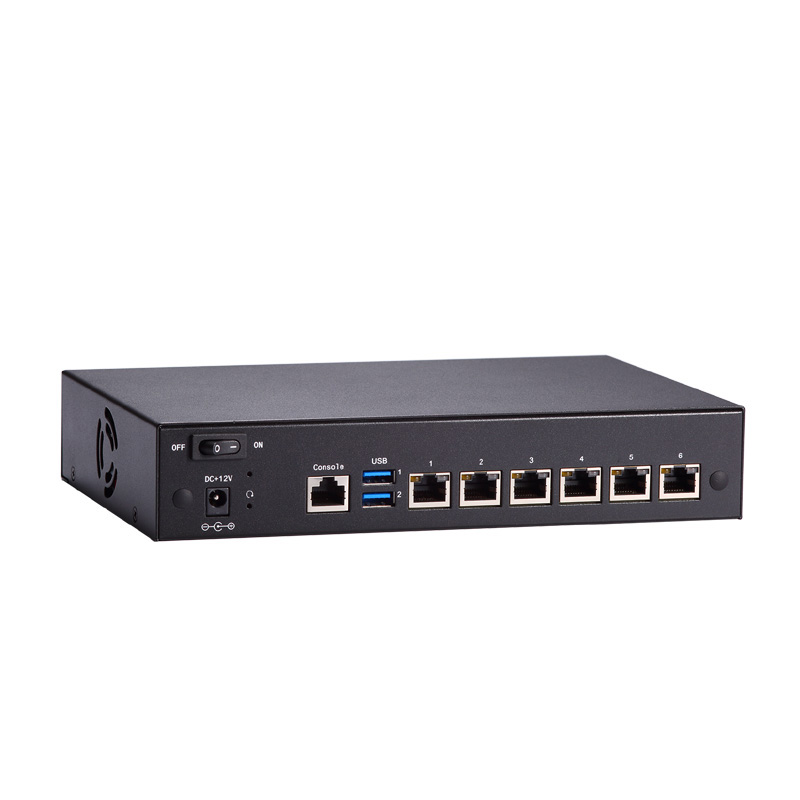

    • NA345-D6GI-N4200-US & HDMI (P/N-E26E345103)
      1U desktop network appliance platform with Intel® Pentium® processor N4200 and 6 GbE LANs & HDMI
    • 5916E552000E
      DB9F-RJ-45 1.8M console cable
  • Drivers

    Software

    Manual

    Date Description Version Download File
    2017/08/08 User's Manual VA1.2 848.9KB

    Technical Announcement

    Certificates

    Date Description Version Download File
    2017/10/16 CE EMC Verification 58.1KB
    2017/10/16 CE LVD Verification 2,122.4KB
    2017/10/16 FCC Verification 23.8KB
    2017/10/16 CE-Conformity Declaration 96.9KB
